INSTALLATION INSTRUCTIONS

PARTS INCLUDED:

• 1 x Stainless Radiator Cover
• 2 x 1/8 Washers
• 2 x Stainless 6MM Bolts
• 2 x Flat Washers
• 4 x Decorative Chrome Caps

Your new cover comes with a protective liner. Do not remove the liner until instructed.

This unique cover offers a new way to customize an area of your Prowler that was never available before. Simply follow the steps below:

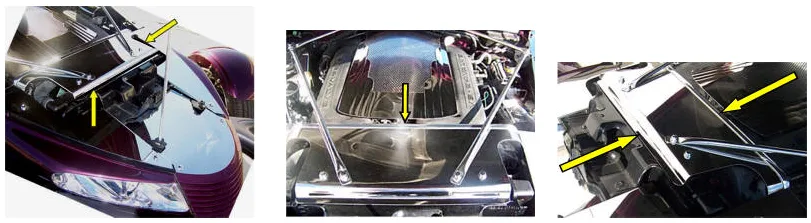

1. Remove the two main bolts securing the engine bay support bars to the factory radiator support and slide the bars to the sides. Note: These two bolts will be replaced.
2. Place the two 1/8 thick washers over the bolt holes. Position the new cover over the factory radiator cover, allowing the two outer factory nuts to protrude through the holes in the cover. Then remove the protective liner.
3. Slide the support bars back into position and secure them with the two stainless 6MM bolts and flat washers provided.
4. You have been provided with four decorative chrome caps for each nut and bolt location. Simply press them into place.
