INSTALLATION INSTRUCTIONS

The Chrysler “Wings” emblem you purchased is a new OEM (Original Equipment Manufacturer) part.

All Prowlers were Chrysler products and can proudly display the Chrysler Wings emblem. Prowler models from 2001–2002 were produced directly under the Chrysler name. Although models from 1996–2000 were produced under the Plymouth name, Plymouth is a division of Chrysler.

Each wing emblem comes with professional-grade automotive double-stick tape for easy installation.

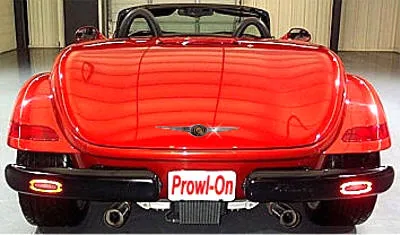

1. Take the emblem without removing the red backing from the tape and hold it on the back trunk of your Prowler. Move it around to different positions until it looks best to you. There is no single correct position since the emblem was not included by the factory.
2. Once you have identified the spot, use a china marker or soft chalk to mark its position. If you want it centered over the license plate, measure the width of the car’s rear, divide it in half, and mark the center.
3. Clean the area thoroughly where you plan to mount the emblem, then dry completely.
4. Carefully peel the red backing off the emblem.
   Warning: This is a permanent adhesive tape. Removing it will likely damage your car’s paint and the emblem itself.
   Hold the emblem over the marked spot, ensuring it is perfectly aligned. Press down gently at first — you may adjust slightly if needed. Then press firmly all over the emblem and let it sit for 4–6 hours to fully bond.
