6pc Front Control Arm Set    PART # ACC-822025
Instructional Photographs
Previous Page  -  Page 4  -  Next Page

Picture 31
Then carefully and slowly start pressing the foil around the arm.

Picture 32
Only do one side at a time.

Picture 33
Press it down so it lays down all the way around.

Picture 34
Then do the other side.  The seem should be directly in the center at the bottom of the arm so it is not visable.

Picture 35
Next install the Lower Stabilizer Arm Stainless Steel cover.

Picture 36
Hold it so the seem is up facing you.  Then line it up at the corner of the cover to the end of the arm nearest the wheel.

Picture 37
Press the arm cover over the stabilizer arm at the corner.

Picture 38
Then push the arm down along the seem until the arm cover is is completely over the stabilizer arm as shown.

Picture 39
Ensure the Arm Cover is completely over the Stabilizer Arm.

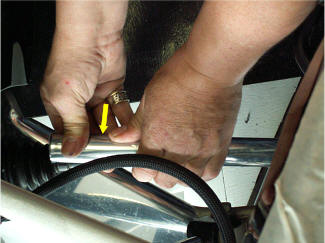

Picture 40
Position the Arm Cover and squeeze to close the seem as much as possible.  It will still be open after you squeeze it.
